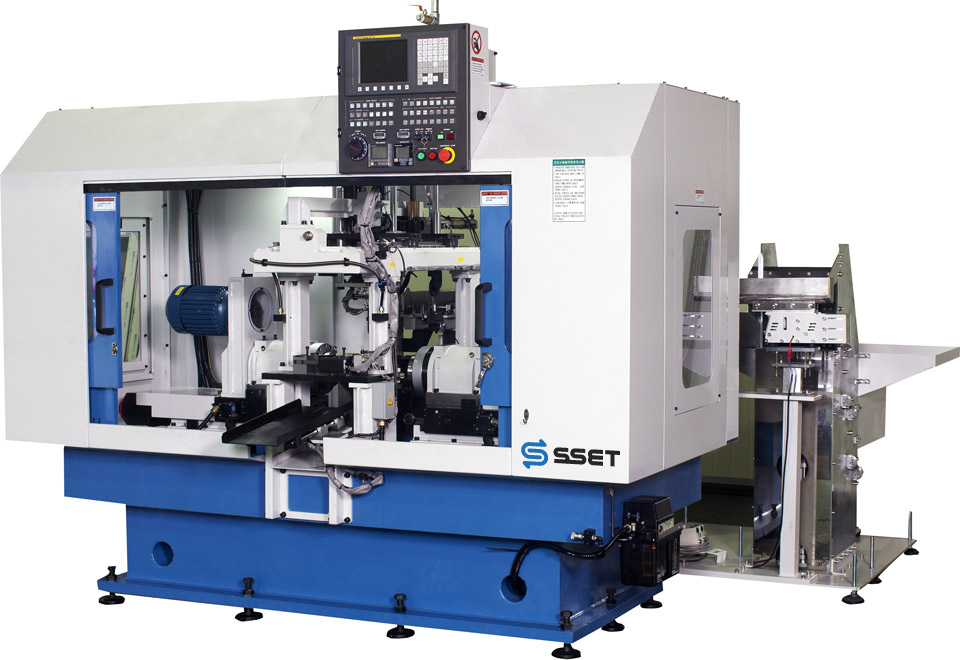

Auto chamfering M/C
SS-CFM0870

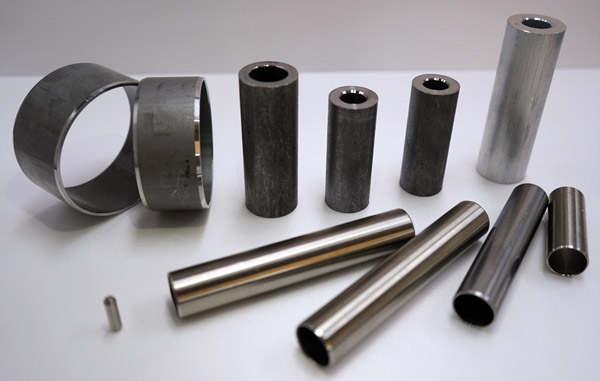

Automatic Chamfering Machine for variety of Pipes
01
Features

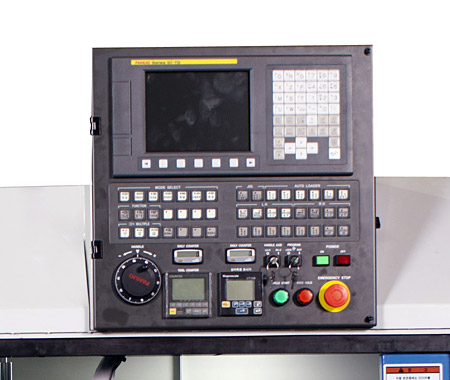

FANUC-CNC
Supports cutting process control unit
Automatic measuring device
Sum/unit analysis and selective emission while transfer measurement.

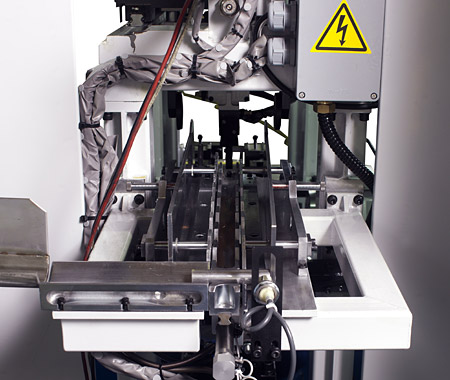

Automatic loading/unloading device
Fast and damage less response for multiple products

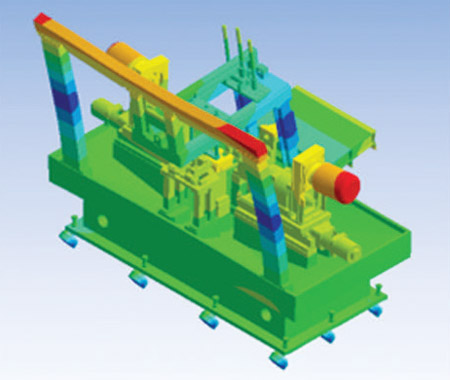

Optimized design
Through stress and vibration analysis optimized to implement excellent durability, precision cutting and elegancy.
Product vise
Replaceable jig per each product, simultaneous support for multiple products

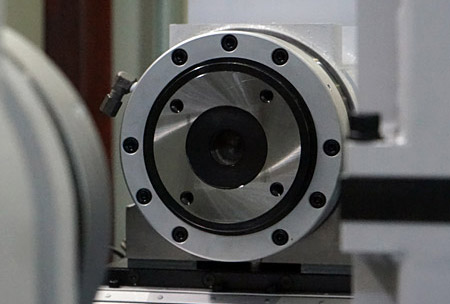

Tool mounter
Pin guide type makes easy, quick and accurate replacement

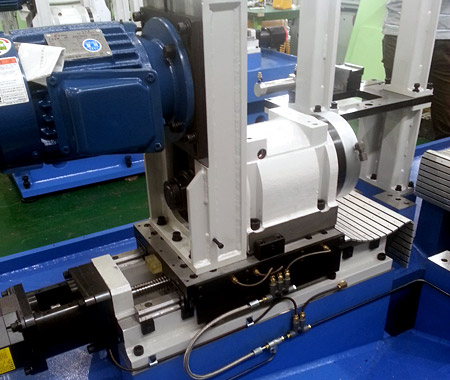

High efficiency headstock
Spindle structure implements high-precision and high-speed rotation
02
Capability
Equipment Capability
Model
CFM-0870
CFM-5012
Processing range
Profile
Φ8~70mm
Φ50~120mm
Length
20~160mm
20~160mm
Thickness
1~10mm
1~10mm
Accuracy
±0.05
±0.05
Capacity
900ea/Hr
700ea/Hr
03
Options
Automatic supplying equipment : Hopper feeder/Ball feeder
Automatic chip pick-up conveyor
Automatic measuring device
