Roll type coater SS-RIC2090, SS-RO1240

Product In/outside automatic roll type coating machine

Inside automatic roll type coating machine

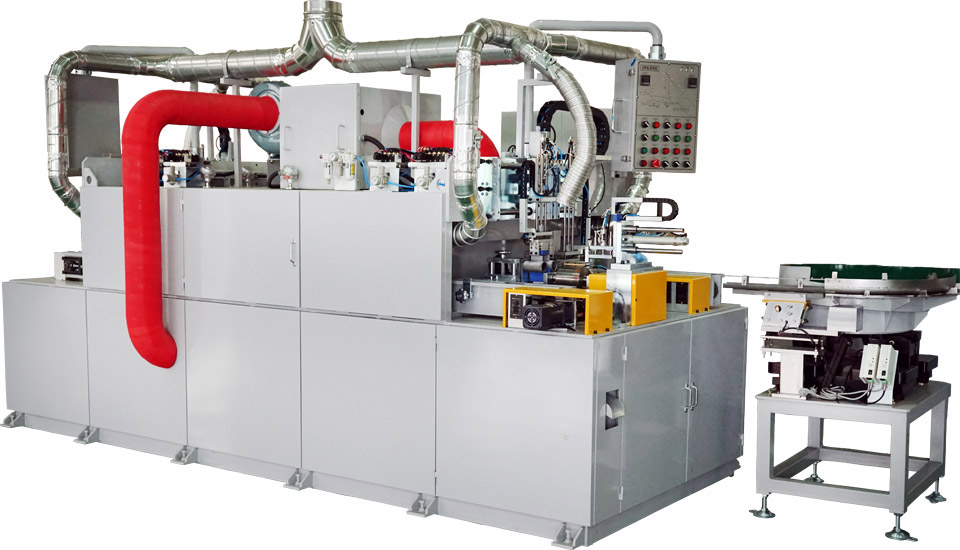

Image: SS-RIC2090

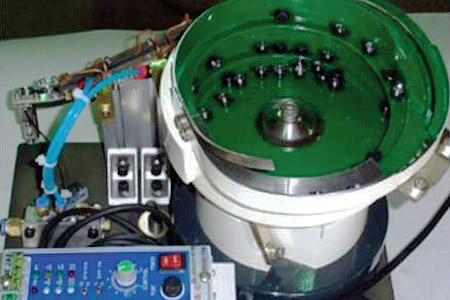

    • Material feeding device
    • Material feeding device

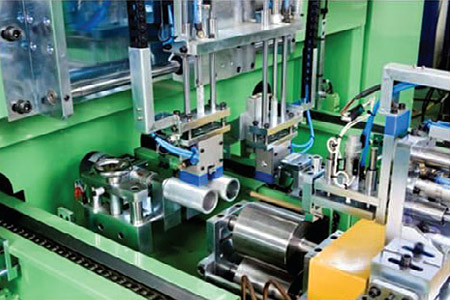

    • Automatic coating device
    • Automatic coating device

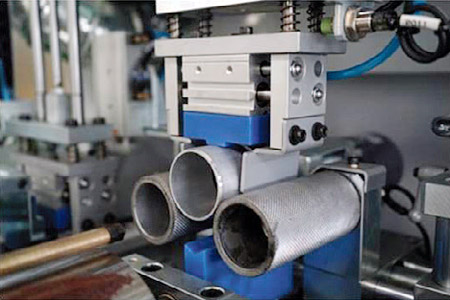

    • Automatic loading/unloading device
    • Automatic loading/unloading device

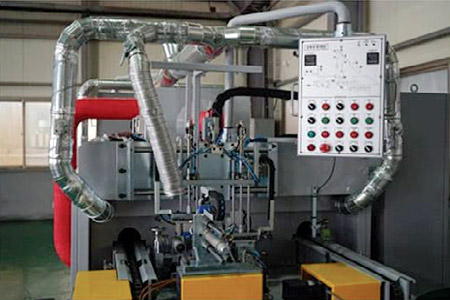

    • Operating panel
    • Operating panel

01 Capability

적용 이미지

Coating method Brush Rolling
Drying method Circulated heating (electric /steam heater)

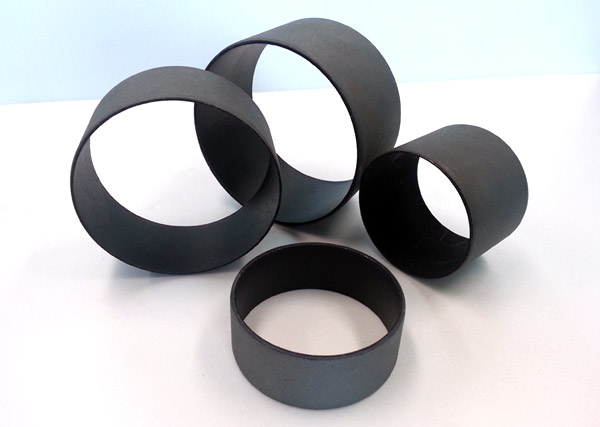

Product Φ20~90mm, Length 20~100mm (inner coating)
Capacity 500~1,000ea/Hr

02 Options

  1. Automatic supplying equipment : Hopper feeder/Ball feeder
  2. Touch screen

Outside automatic roll type coating machine

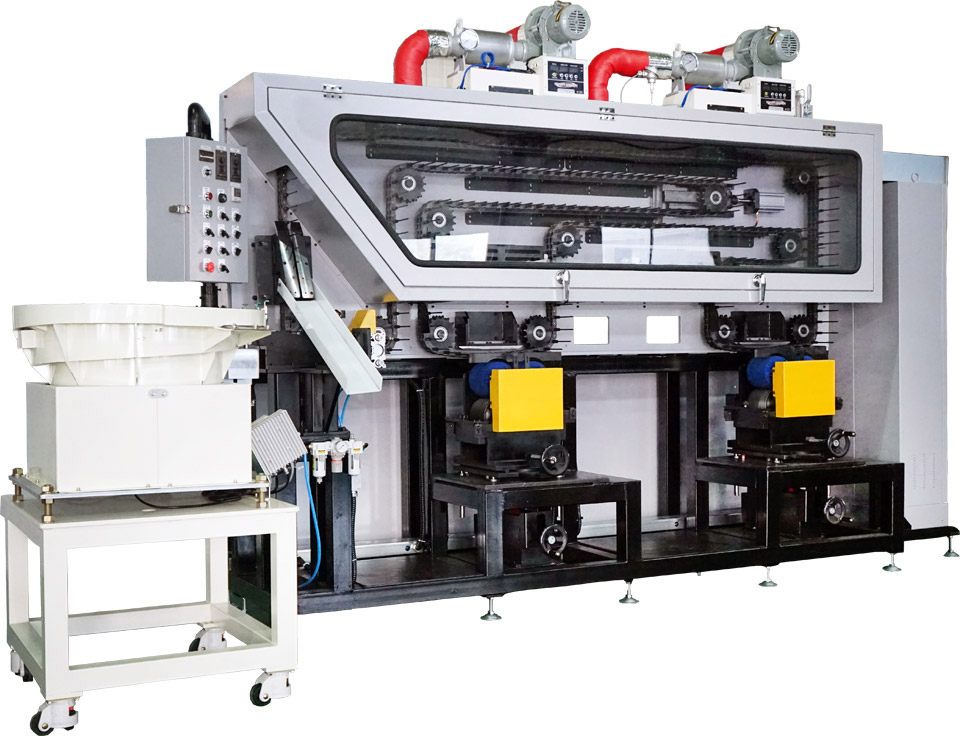

Image: SS-RO1240

01 Features

  • Easy inspection of bed product with oneside location of load/unload unit

02 Capability


Coating method Brush Rolling
Drying method Circulated heating (electric /steam heater)

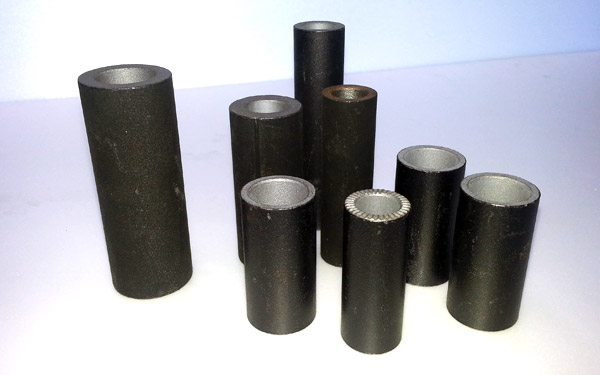

Product Φ12~40mm, Length 20~100mm (outer coating)
Capacity 2,500~3,000ea/Hr

03 Options

  1. Automatic supplying equipment : Hopper feeder/Ball feeder
  2. Touch screen
